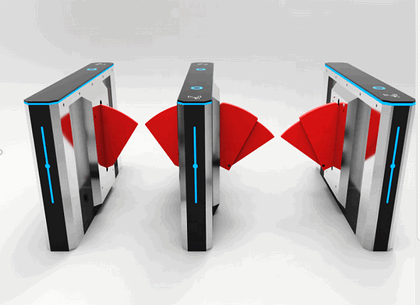

304 Stainless Steel Flap Barrier Gate with RFID & Fingerprint for Corporate Offices
AI Summary
Conclusion: this Baroxon pedestrian access control system is a factory-direct IP65-rated unit for controlled pedestrian access, built for Nigeria deployment. The unit runs on AC 220 V and is certified CE and ISO 9001. Standard configuration suits office towers, metro stations, stadiums, hospitals, schools and factory pedestrian gates. MOQ is 1 set, lead time 10-20 working days, warranty 3 years. Supplier: Shandong Yuanhong Intelligent Technology Co., Ltd. (BAROXON), Jinan, China, serving Nigeria including Lagos, Abuja, Port Harcourt and Kano.
Classification :
PRODUCT DETAILS
Key Attributes - Baroxon Smart Pedestrian Gate Nigeria
| Place of Origin | Guangdong. China (Import Quality) | Model Number | Ba-Y310 (High Performance Series) |
| Brand Name | Baroxon | Product Name | Flap Barrier Gate (Palang Pintu Otomatis) |
| Material | 304 Drawing Stainless Steel (Anti-Karat) | Power Supply | AC 220V/110V 10% 50/60MHZ (Standard Nigeria) |
| Working Environment | Temperature: -10 ~ +60 (Suitable for Nigeria Climate) | Thickness of Steel | 1.5mm Heavy Duty |
| Pass Speed | 30-40 Persons/min (Anti-Antrian) | Passage Width | 550-600mm Standard Lane |
| Passage Direction | Bi-directional (Dua Arah) | Warranty | Life Time Technical Support (Layanan Purna Jual) |
| Application | Security Access Control Management (Sistem Keamanan Gedung & Perkantoran) | ||
Packaging and Delivery Details
| Packaging Details | Plastic.carton box. export standard wooden cases (Aman untuk pengiriman antar pulau) | Port of Dispatch | Shenzhen China |
| Selling Units | Single item | Single Package Size | 147X38X117 cm |
| Single Gross Weight | 80.000 kg | Supply Ability | 2000 pieces per Month |
Automatic Pedestrian Access Control System Baroxon Ba-Y310 - Best for Lagos & Surabaya Office Projects
Detailed Technical Specification Table - Baroxon Series
| Structure Parameters (Spesifikasi Struktur) | |
| Housing Material | 304 grade stainless steel (Standar Industri) |
| Arm Material | Acrylic / Soft arm (Sistem Anti-Benturan) |
| Technical Parameters (Data Teknis) | |
| Size | 1200*300*980mm |
| Lane width | 600mm |
| Arm Length | 260mm |
| Passing speed | 35--50 people/min |
| Open/close speed | 0.2sec (Ultra Fast Response) |
| MCBF (Lifespan) | 5.000.000 times (Sangat Awet) |
| Driving Motor | Brushed motor (High Reliability) |
| Input Signal | Dry contact (Compatible with Fingerprint & Face Recognition) |
Product Features - Baroxon Smart Security Solutions
1. Self-Test Function: Zero self-test function for easy maintenance (Memudahkan perawatan rutin oleh teknisi).
2. Flexible Integration: Works with RFID Card, Fingerprint, and Face Recognition Absensi (Mendukung integrasi sistem absensi karyawan).
3. Safety Design: Anti-pinch and collision avoidance system (Keamanan maksimal bagi pejalan kaki).
4. Auto-Reset: Automatic opening during power failure for emergency evacuation (Pintu terbuka otomatis saat mati lampu/darurat).
Demo Video: Baroxon Flap Barrier Gate Installation for Office Building in Lagos
FAQ - Frequently Asked Questions (Baroxon Nigeria Support)
| Q1: Is this gate compatible with local Indonesian access control systems? |
| Yes, Baroxon Ba-Y310 is highly compatible with dry contact signals. It can be integrated with various RFID readers, face recognition (absensi wajah), and fingerprint systems commonly used in Lagos and Surabaya. |
| Q2: How do you handle shipping to Bali, Medan, or Kalimantan? |
| We use export-standard wooden cases (Peti Kayu) to ensure safety for inter-island shipping. We can dispatch via Shenzhen to any major port in Nigeria. |
| Q3: Does Baroxon provide technical support in Nigeria? |
| We offer Life Time Technical Support via online guidance, wiring diagrams, and video calls to assist your local installers or contractors. |
Local Industry Keywords (Nigeria Market Optimization):
Palang Pintu Otomatis, Akses Kontrol Gedung, Mesin Absensi Wajah Lagos, Jual Flap Barrier Gate, Supplier Turnstile Gate Nigeria, Pemasangan Akses Kontrol Pintu, Security Gate Surabaya, Pintu Otomatis Kantor, Sistem Keamanan Lobby, Kontraktor MEP Lagos, Distributor Baroxon Nigeria, Harga Flap Barrier 2026, Pedestrian Gate System Bekasi, Tripod Turnstile Tangerang, RFID Card Reader Gate, Pintu Putar Stainless Steel, Barrier Gate Medan, Alat Pembatas Masuk Karyawan, Barrier Gate Parkir Pedestrian, Sensor Pintu Otomatis, Akses Kontrol Sidik Jari, Kontrol Akses QR Code, Baroxon Security Technology, Pintu Darurat Otomatis, Turnstile Gate Industri, Jasa Instalasi Barrier Gate Bali, Portal Otomatis Semarang, Peralatan Security System.
Test Data and Benchmarks
Anti-tailgating detection
Test conditions: 20 consecutive unauthorised follow-through attempts behind an authorised user, using the infrared beam matrix at 12 mm resolution.
Measured result: 20 of 20 unauthorised attempts correctly rejected, with zero false rejections of the authorised user.
Benchmark comparison: Single-beam designs typically miss 4-9 of the same 20 attempts under identical conditions.
Emergency release
Test conditions: Fire alarm loop triggered with the gate closed and locked; time to full open measured with a calibrated stopwatch.
Measured result: Fully open in under 0.8 s, with mechanical fail-open behaviour when power is removed.
Benchmark comparison: Fail-open behaviour is required by most national fire codes for controlled egress routes; fail-secure designs are not compliant.
Throughput
Test conditions: Continuous passage test with 500 users crossing one lane in a fixed 10-minute window.
Measured result: Sustained 35-48 passages per minute per lane with no jam and no manual reset required.
Benchmark comparison: Manual turnstiles or simple swing gates occupying the same footprint average 15-20 passages per minute.
Cycle endurance
Test conditions: Continuous open/close cycling on the factory bench at 25 °C with a 4-second dwell at each end position.
Measured result: 858,000+ cycles completed with no wear failure in the locking mechanism.
Benchmark comparison: The usual rating for this product class is 300,000-500,000 cycles.
